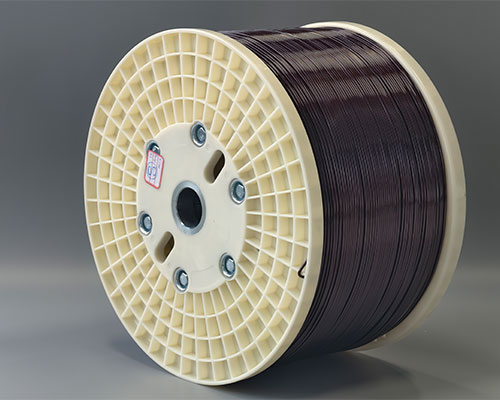

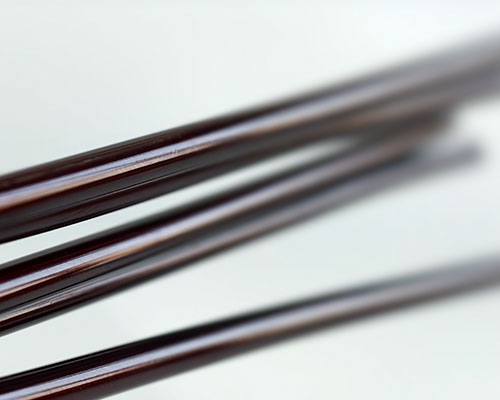

Round Enameled Aluminum Wire

Round enameled aluminum wire is mainly used as an electrical conductor wherever coils are in motion.It’s available size in diameters from 0.20mm to 8.0mm(SWG1-36,AWG1-32) with different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimide etc..

Round Enameled Aluminum Wire Specifications

roduct Model	Insulation Type	Thermal Class	Wire Gauge	AWG	NationalStandard	IECStandard	NEMA Standard	Application
PEWA/155	Polyester	155℃ (F)	0.30-5.00mm	(4.5-29)	GB T 23312.4	–	MW 24-A	Household appliance, Transformer
EIWA/180	Polyester-imide	180℃ (H)	0.30-5.00mm	(4.5-29)	GB T 23312.5	IEC 60317-15	MW 76-A
EI/AIWA/200	Polyester or Polyester-imide overcoated polyamide-imide	200℃ (C)	0.30-5.00mm	(4.5-29)	GB T 23312.7	IEC 60317-25	–	Household appliance, Transformer
EI/AIWA/220	Polyester or Polyester-imide overcoated polyamide-imide	220℃ (C)	0.30-5.00mm	(4.5-29)	Enterprise standard	–	MW 35-A	Industry motor, Household appliance, Transformer

What is Round Enameled Aluminum Wire?

Enameled round aluminum wire is a type of magnet wire coated with an insulating enamel layer. Enameled round aluminum wire is a copper-free alternative to traditional copper magnet wire, offering a lighter, cost-effective solution for manufacturers in various industries. The primary benefit of using aluminum wire over copper is its lighter weight and cost-effectiveness, while still maintaining excellent conductivity for a wide range of uses. This wire is particularly ideal for motor windings, transformers, inductors, and other electromagnet devices.

Applications of Round Enameled Aluminum Wire

Enameled round aluminum wire is used in a wide range of electrical and industrial applications, including:

1. Motor Windings:
   This wire is commonly used in the windings of electric motors, where its light weight and high conductivity offer efficiency and durability.

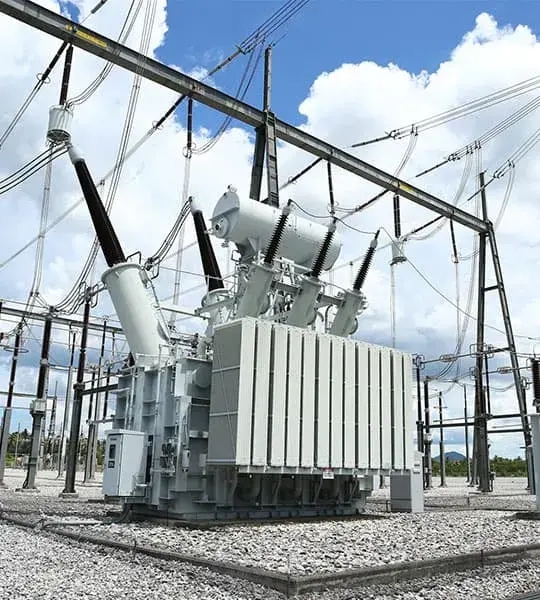

2. Transformers:
   Enameled round aluminum wire is ideal for use in transformer coils, where electrical insulation and efficient energy transfer are essential.
3. Inductors:
   Aluminum wire is used in the construction of inductors, providing a cost-effective solution for high-frequency applications.
4. Generators:
   The wire is used in the manufacturing of generators, where its durability and high conductivity help optimize power generation.
5. Winding of Coils:
   In various electrical devices, such as relays, solenoids, and sensors, enameled round aluminum wire is used to wind coils that perform key electrical functions.

Why Choose Round Enameled Aluminum Wire?

Enameled round aluminum wire is a popular choice in the electrical and electronics industries due to its lightweight, cost-effective, and high-performance qualities. The enamel coating ensures that the wire can operate in high-temperature environments without compromising on durability, making it a reliable choice for various applications.

Choosing the right round enameled aluminum wire for your project can help enhance the performance, efficiency, and cost-effectiveness of your products. Whether you are in the automotive, electronics, or industrial machinery sectors, this wire provides an ideal solution for your needs.
